Oil Process System
BATH HEATERS
Parctec shall supply the bath heaters with water bath for the Low temperature applications up to 180 Deg C with water as medium. The skid mounted Heater system which Burner, heating coils, Oil tubes and U tubes for gas firing.
Bath heaters Up to 180 Dec C- Water & Water Glycol Mixture
Bath heaters up to 420 Deg C – Heat Transfer Salt bath
Water bath heaters (WBH) provide a well-established method for heating oil and gas and are known within the industry for their successful application across a range of operations.
Typically used on offshore platforms, refineries and gas suppliers, they mitigate the need for a high pressure vessel and form a critical component on oil and gas networks.

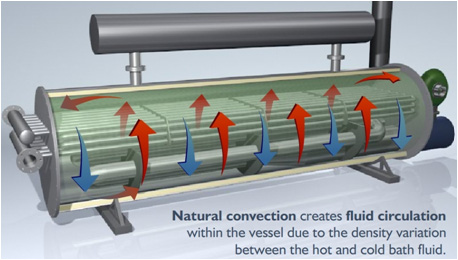

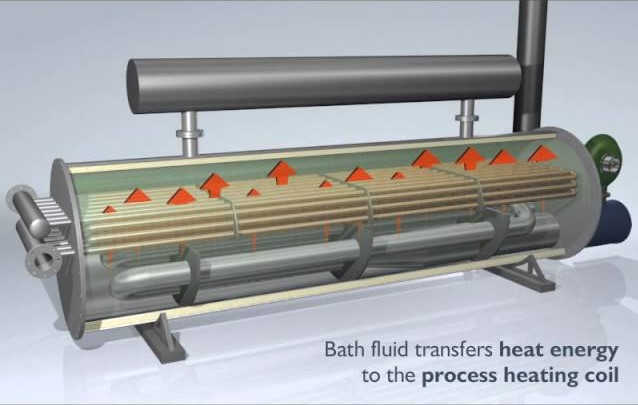

WBHs work by submersing a process coil into a heated bath solution, such as water-glycol mix, molten salt, or oil. This indirectly heats the oils or gas inside to 130 to 150 degrees Fahrenheit (though higher temperatures can be achieved with an oil or molten salt bath solution) as it flows through the heater’s tube bundles and creates energy.
It is important that the tube bundles are not directly heated to reduce the risk of unwanted condensates. Should they come into contact with high temperature gases, moisture in the gas could cause the tube bundles to condense and subsequently produce a corrosive liquid.
Uses of water bath heaters
WBHs utilise a safe, simple process. In the event of coil failure, this indirect heating method helps to reduce the risk of explosion. They are typically used for: heating transfer fluids; regeneration gas heating, vaporising and superheating LPG and LNG; and heating sensitive gases and fluids, such as crude oil.

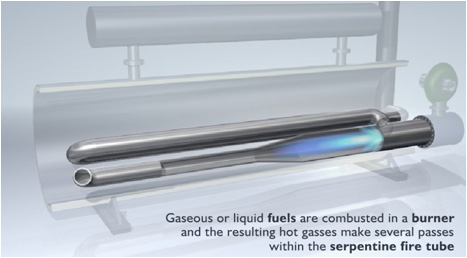

Typically, a WBH will consist of a control system, insulated shell, removable fire tube and process coil, stack burner and gas train. Aquatec, a series of water bath heaters from leading manufacturer of heaters and tanks Heatec, feature an externally insulated heater shell, burner, furnace tube, serpentine tube bundles, an expansion chamber, and an aluminium skin.

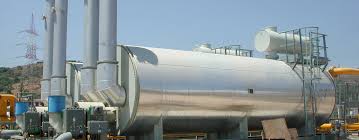

They are skid-mounted, factory-wired and piped and the furnace tube may be either a single U-tube or multiple U-tubes, depending on the Btu required.
Heatec design, manufacture and service heating and storage systems around the world. The company’s products are used throughout the hot mix asphalt industry as well as chemical plants, oil-and-gas refineries, on off shore platforms, barges, and many others.
